CO2 blown extruded polystyrene UFH board
XFLO 300 boards are made from high compressive strength extruded polystyrene able to withstand the rigours of the installation process as well as the long term loads imposed in residential and commercial applications. The boards are manufactured to suit the pipe diameter and spacing required to achieve the desired thermal output
Find my local representative
Related products
YELOfon ES5
ScreedBoard® 20
FIBREfon 8
FIBREfon 10
ULTRAplate 1i

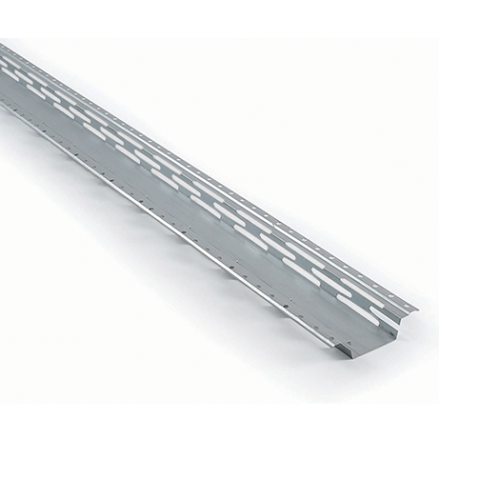

HP30 Resilient Bar
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
XFLO 300
Product description
CO₂ blown extruded polystyrene UFH board
Strength at 10% compression (kPa)
300
Thermal conductivity W/mK
0.033
Standard thickness (mm)
40, 50, 60, 75
Board sizes (mm)
600 x 1250, 600 x 2500
Route sizes available to suit UFH pipe diameter (mm)
10, 12, 15, 16
Pipe centre options
150, 200, 300
Return style options
Arch (default), Tulip
Minimum order quantity
1 board
Associated heat diffusion plate
Cellecta ULTRAplate 1i
Associated thermal perimeter edge strip required
Cellecta Thermal Edge Roll
High compressive strength XPS (300kPa)
Manufactured to suit pipe diameter
Mojave M1 component
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
