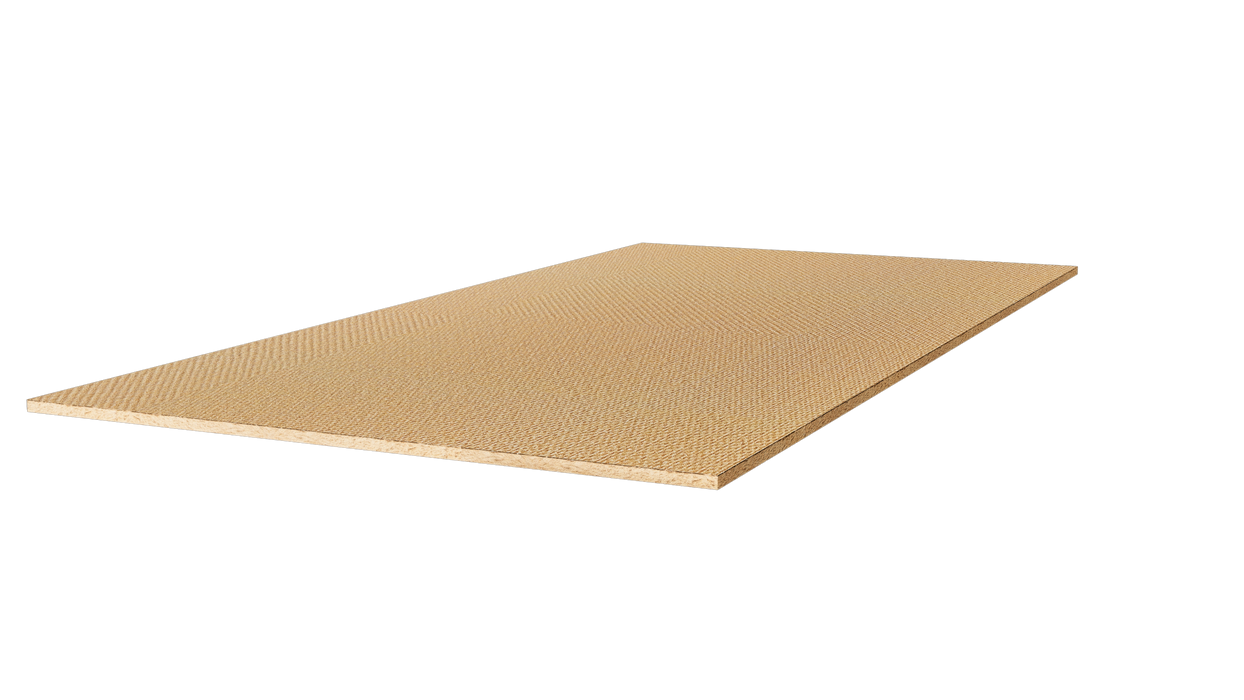

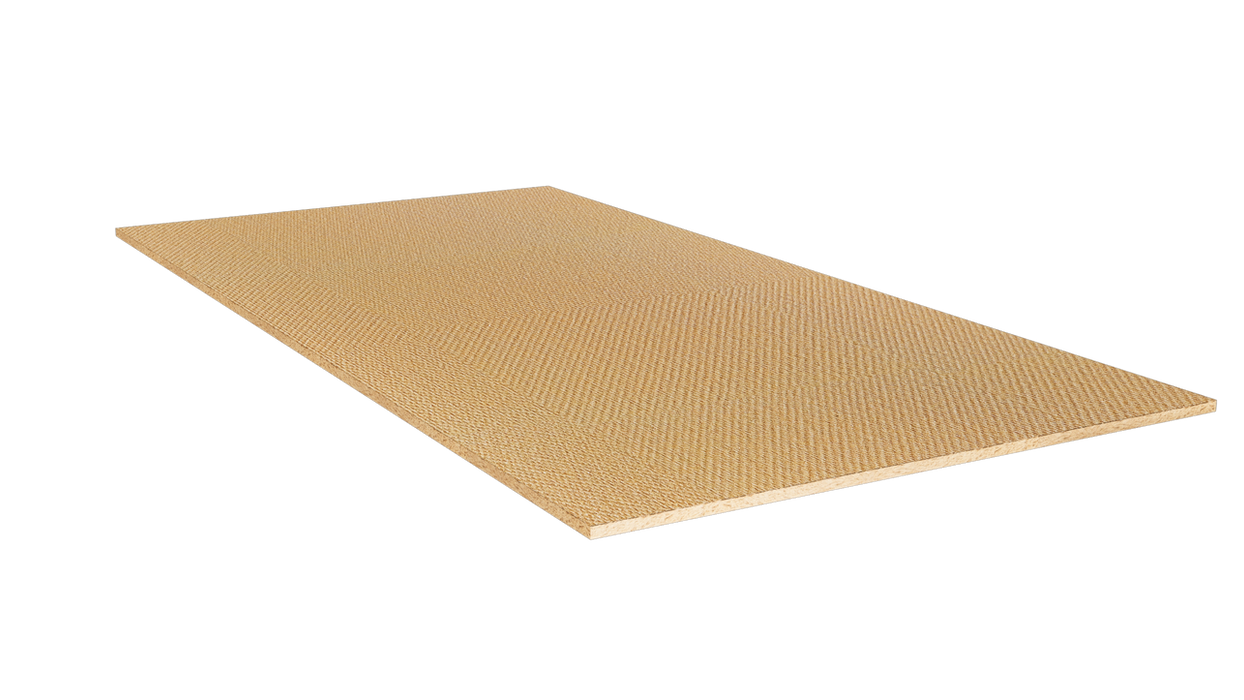

High load acoustic layer for concrete floors
To ensure a Mojave underfloor heating system complies with acoustic performance standards, Cellecta offers three resilient layers - FIBREfon 10 is uilised on concrete floors and high-load applications.
Related products
YELOfon ES5
ScreedBoard® 20
XFLO FF 250
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
FIBREfon 10
Product description
High load acoustic layer for concrete floors
Composition
Woodfibre board
Thickness
10mm
Roll/sheet dimensions (m)
0.6 x 1.2 (0.72m²)
Thermal conductivity (W/mK)
0.05
Weight (roll/sheet)
2.20kg/lm, 1.58kg/length
Minimum order quantity
1 sheet
Robust Detail compliance
FFT4 (E-FS-1, E-FC-1 & E-FC-2)
10mm thick
For concrete floors
Woodfibre board
Downloads
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
