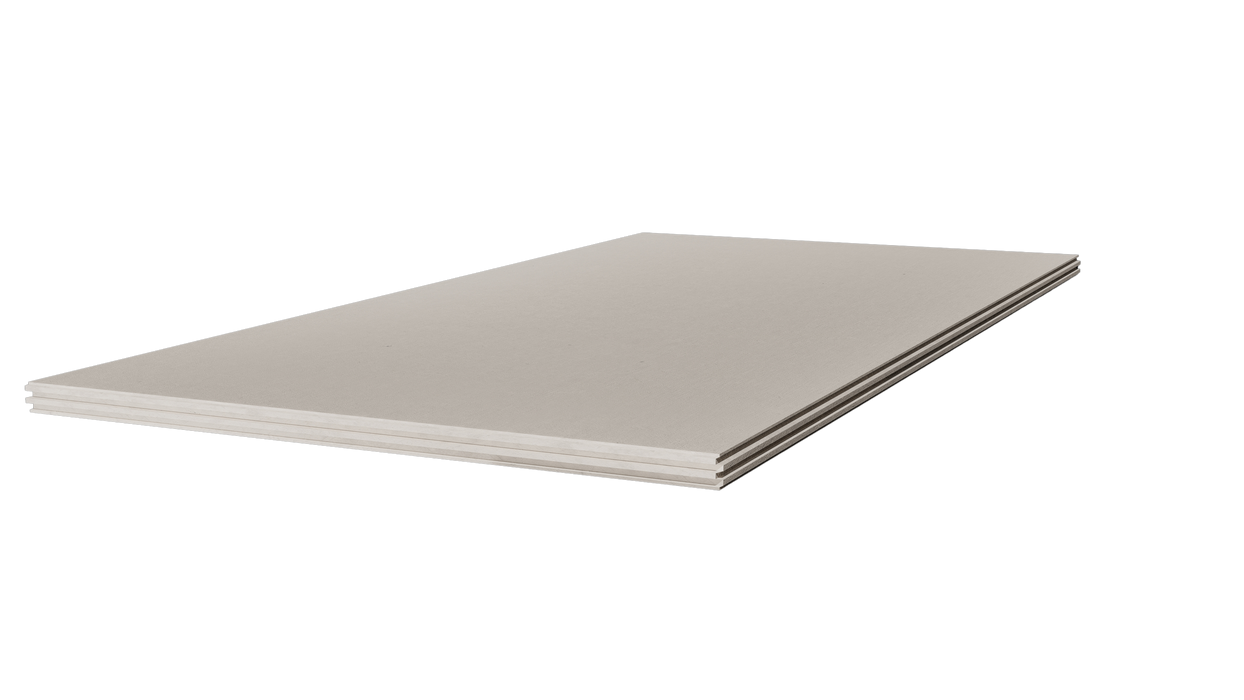

Highly conductive structural floorboard
HiDECK Structural 25 floorboard has a high density and low deflection, making them ideal for Gobi acoustic cradle and batten applications where a brittle finish to be installed. The boards have a high thermal conductivity, enabling an underfloor heating system to operate a low flow temperatures, saving on running costs.
Related products
YELOfon ES5
Cellecta PRO Adhesive
RUBBERfon Cradles & Battens
DECKfon Batten 70
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
HiDECK Structural 25
Product description
Tongue & groove, high density gypsum, low thermal resistance structural floorboard
Thickness
25mm
Thermal resistance
0.0625
Bearing spacing (45mm wide)
400mm (max) centers
Board dimensions
600mm x 2400mm
Weight
31.25kg/m² - 22.5kg/board
Flanking/edge strips
YELOfon ES5/120
25mm board
Recycled high quality gypsum
3x more thermally conductive than chipboard
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
