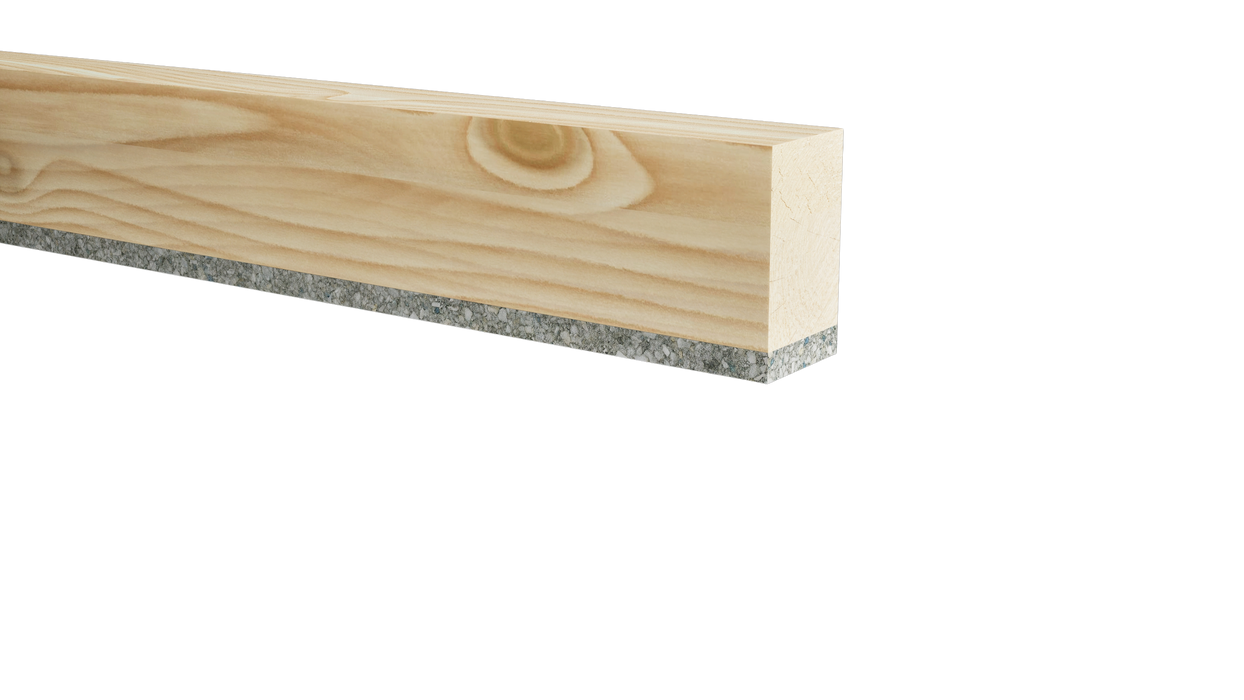

Resilient composite deep batten
DECKfon acoustic battens consist of a layer of recycled, low resonance, open-cell, flexible polyurethane foam bonded to a timber batten. They have been rigorously tested, and are Robust Detail compliant for steel, concrete & timber separating floor applications (FFT1).
Related products
YELOfon ES5
Cellecta FON Adhesive
FIBREfon Micro 15
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
DECKfon Batten 70
Product description
Composite acoustic deep batten
Resilient layer
10mm open-cell PU foam
Design height
70mm
Pre-loaded height
75mm
Batten dimensions (timber element) (mm)
65(h)x45(W)x2400(L)
Weight
1.57kg/lm, 3.77kg/length
Quantity per pallet
300 lengths, 720lm
Minimum order quantity
1 batten
Associated acoustic perimeter edge strip required
YELOfon ES5/120
Excellent acoustic performance
Robust Detail FFT1 compliant
FSC®/PEFC® certified timber batten
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
