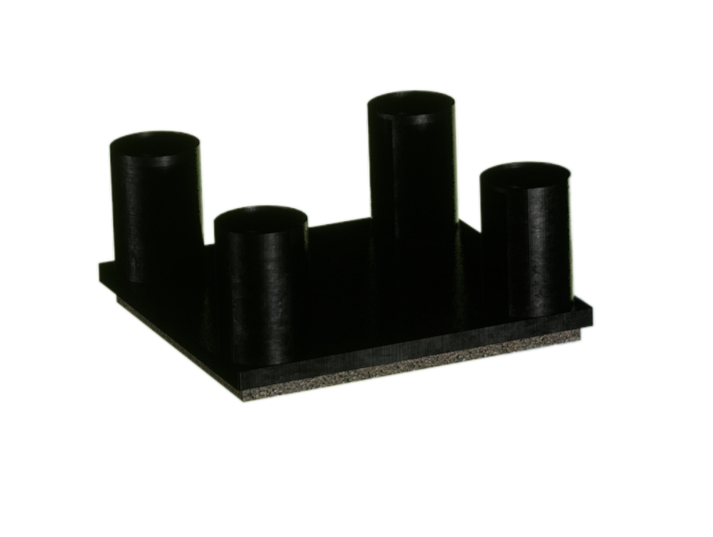

High impact polypropylene acoustic cradle
RUBBERfon acoustic Cradles & softwood Batten system is the ideal solution to quickly and easily level uneven steel, concrete or timber floors. Fine adjustments can easily be made by inserting incremental, high impact polypropylene plastic packers.
Related products
YELOfon ES5
RUBBERfon Elevation Block
HiDECK Structural 25
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
RUBBERfon Cradles & Battens
Product description
High impact polypropylene acoustic cradle
Cradle dimensions (mm)
10 x 100 x 100
Timber Batten dimensions (mm)
65 x 46 x 2400
Insulation Support Battens dimensions (mm)
35 x 45 x 2400, 40 x 45 x 2400
Corresponding UFH insulation board
30mm XFLO JB or JB-FF, 25mm XFLO JB or JB-FF
Cradle levelling packers
2mm, 3mm, 5mm (250 per box)
Cradle elevation blocks
15mm (225 per box), 30mm (208 per box)
Excellent acoustic performance
Robust detail FFT2 compliant
Levels all types of uneven floors
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
