Installation Guide

Cellecta’s DECKfonULTRAmat 15 is a high performance, dense, three-layer composite mat that improves both the impact and airborne performances of a floor where there is limited room height available.

Contents:

DECKfon ULTRAmat 15

Products and Tools

Products


To complete the installation, you will need the following items.

Cellecta components

  • DECKfon ULTRAmat 15

  • FS Flanking strip

  • HG-Tape

  • HB724 Adhesive


Tools


  • Utility knife

  • Tape


Health & Safety


DECKfon ULTRAmat 15 weighs 22.75 KG.


Manual handling guidelines state that the maximum safe lifting weight for a female is 16kg and for males 25kg. These limits can vary based on several factors. These include how high the object is lifted, and whether the lift is being held close to the body or at arm’s length.


Source: HSE’s Guide to Manual Handling at Work


Seek advice from site management when handling or moving rolls of DECKfon ULTRAmat 15.

Pre-Installation

Sub-Floor Preparation


  • Prior to installing the ULTRAmat 15, ensure that the substrate is structurally sound, dry and level.

  • Clean the floors of any building debris to allow the ULTRAmat to lay flat.

  • Any loose floorboards should be secured to the joists with suitable fixings.


Pre-Installation


Before commencing installation, take time to familiarise yourself with the layout of install, the products, and these instructions.


Acclimatisation


Prior to installation of ULTRAmat, it should be left to acclimatise in the area to be treated for at least 24 hours.

Installation

Laying DECKfon ULTRAmat 15

  • The DECKfon ULTRAmat 15 should be installed in a brick bond pattern, ensuring no gaps occur between the boards by butting the mats tightly together.

  • The ULTRAmat can be cut using a sharp knife . Ensure suitable PPE used and comply with the safety data sheet, a copy can be found on Cellecta’s website or a copy provided by contacting Cellecta’s technical department.

  • Install YELOfon FS flanking strip to all perimeter walls and abutments. If over-boarding with plywood Leave a 6mm gap around the perimeter and install the FS flanking as the plywood is installed.

  • Work away from a corner of the room in rows using the off-cut to start the next row, don’t use any off-cuts shorter than 150mm.

  • For additional stability, HG-Tape can be installed over the joints.


 Sanitary Ware & Kitchen units

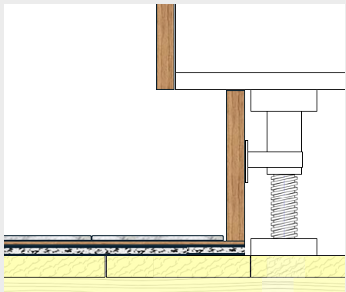

  • Sanitary ware and kitchen units must be built off the sub-floor with the ULTRAmat dressed up close to the legs or units.

  • Install any decorative panels such as plinths or bath panels to produce a neat finish. Seal any gaps with a flexible mastic/sealant.



Floor Finishing

Floor Finishes

  • Once installation of the ULTRAmat is complete, floor finishes can be installed.

  • Install all floor finishes on top of the ULTRAmat in accordance with the manufacturer's instructions and the relevant British Standards.


Carpet

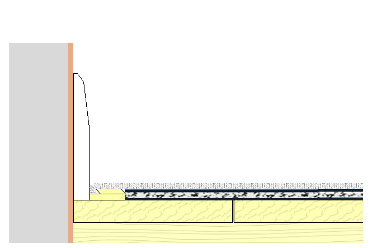

It is recommended that any carpet grippers be fixed to the subfloor and raised if required using a 15mm thick timber batten with the ULTRAmat dressed tightly to it.


Wooden, laminate floors & vinyl

  • A 6mm/9mm plywood cover board should be adhered over the ULTRAmat to provide additional stability before installing laminate floors.

  • The plywood should be adhered with Cellecta HB724 Surface adhesive. The Plywood should be offset so the board joints do NOT mirror the ULTRAmat.


Tiles

Follow the guidance for laminate floor finishes above, using 9mm plywood, for large format tiles consult with Cellecta Technical department.


Best Practice

  • Cellecta is constantly reviewing all its guidance and best practices and therefore reserve the right to alter specifications and guidance at any time and without notice. The information contained in this document is based on Cellecta’s experience and represents best practices at the time of writing, this document does not act as a Guarantee of the product or its performance.

  • Any third-party advice shown should be checked with the relevant party, to ensure that it is current and meets best practice, industry standards and legislative requirements. Cellecta accept no responsibility for this third-party advice.

​

Specifications

Brand name

DECKfon ULTRAmat 15

Product description

Composite high density acoustic mat

Thickness

15mm

Mat dimensions

1200mm x 1200mm

Facing (top on bottom)

3mm recycled PVC with density fillers

Resilient core

9mm flexible open-cell PU foam

Weight

15.8kg/m² - 22.75kg/mat

Associated flanking strip required

YELOfon ES5/15

​

​

Downloads
Robust Detail and Proprietary applications
Application

Refurbish and Conversion Timber separate floor

High density composite acoustic overlay mat laid on timber sub floor

Third Party Accreditation and Approvals
