High density composite acoustic mat

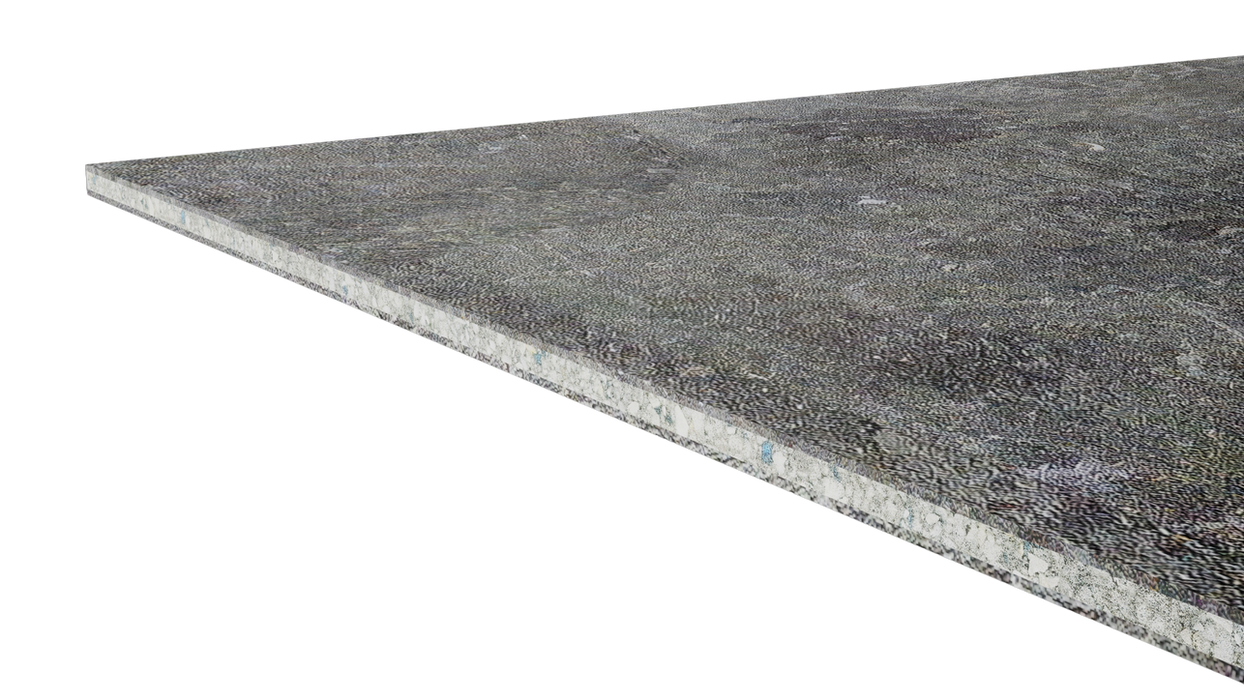

DECKfon ULTRAmat 15 is a high performance, three layer composite mat that will improve both the impact and airborne performance of a floor where there is limited room height available. Once laid, the mat can be covered with carpet or suitable wooden flooring.
Related products
YELOfon ES5
FIBREfon Micro 50
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
DECKfon ULTRAmat 15
Product description
Composite high density acoustic mat
Thickness
15mm
Mat dimensions
1200mm x 1200mm
Facing (top on bottom)
3mm recycled PVC with density fillers
Resilient core
9mm flexible open-cell PU foam
Weight
15.8kg/m² - 22.75kg/mat
Associated flanking strip required
YELOfon ES5/15
Only 15mm thick
Ideal for conversion & refurb projects
Excellent acoustic performance
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
