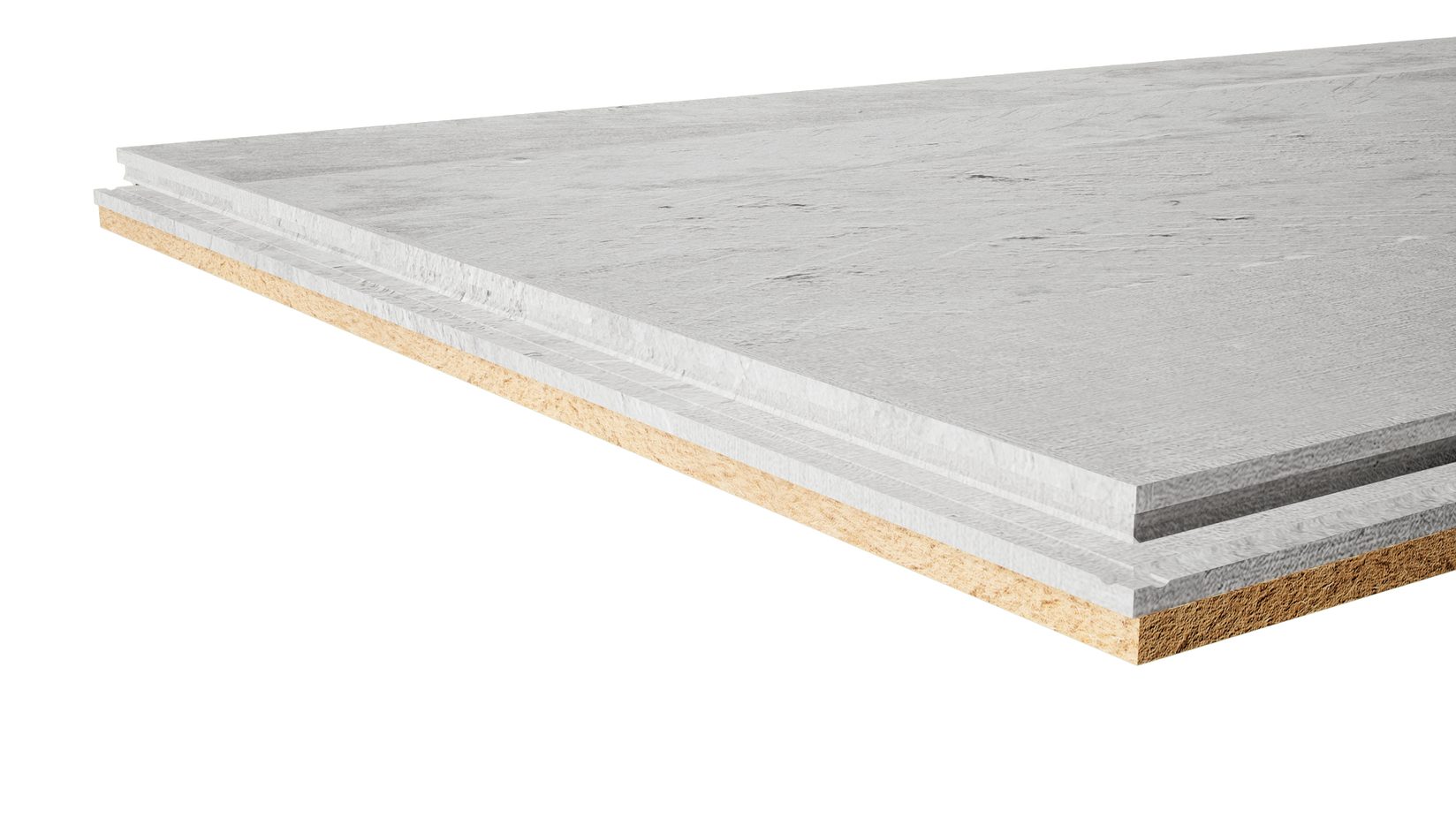

High density composite acoustic overlay floorboard
ScreedBoard 30 composite acoustic overlay treatment specifically for concrete separating floors. The board’s high density and superior compressive strength resilient layer provides outstanding acoustic performance and an ideal base to accept a multitude of floor finishes.
Related products
YELOfon FS15
YELOfon FS30
YELOfon FS50
Cellecta PRO Adhesive
ScreedBoard Tool Kit
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
ScreedBoard® 30
Product description
Composite acoustic overlay floorboard
Thickness
30mm
Resilient layer
10mm woodfibre board
Edge Profile
Interlocking tongue and Groove
Dimensions
600 x 1200 mm
Weight
27.2 kg/m² - 19.58 kg/board
Associated flanking ftrip options
YELOfon FS 15, 30, 50
Thickness
30 mm
Compatible with all types of concrete floors
Robust Detail FFT4 compliant acoustic treatment
Interlocking edge detail
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
