Perimeter flanking strips

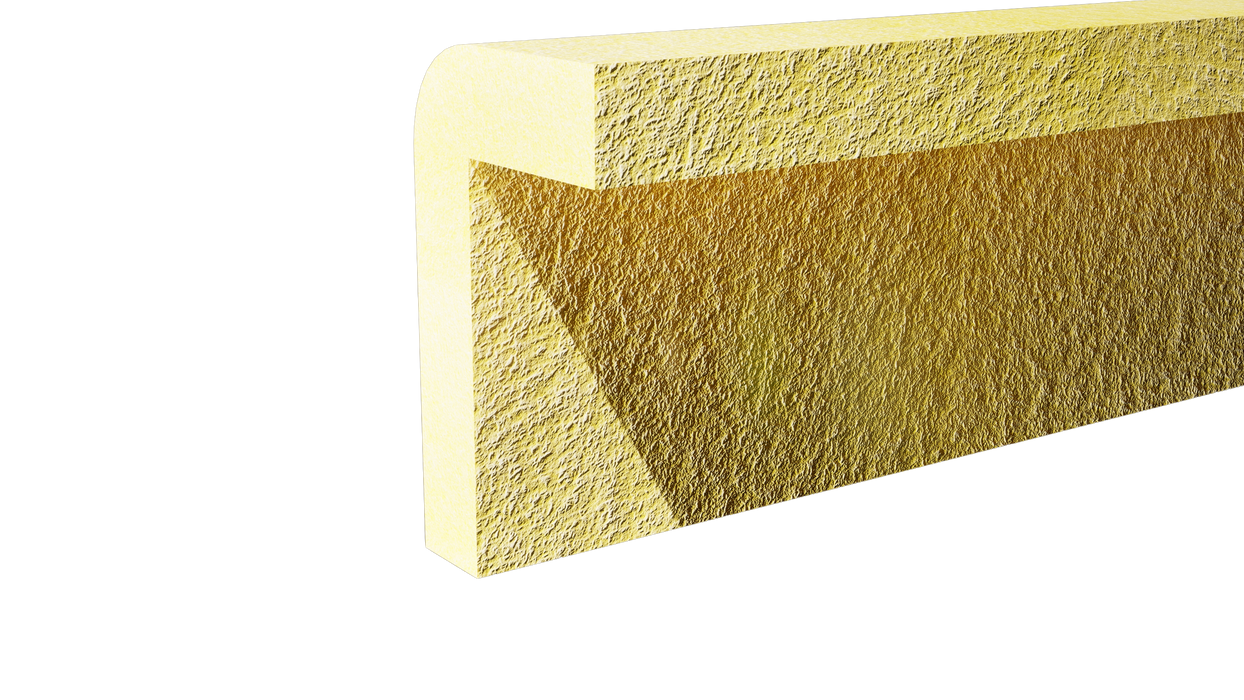

YELOfon FS strips are "L" profiled flanking strips. Three sizes are available to suit each specific acoustic treatment. When installed around a floor's perimeter they will eliminate acoustic bridging between the acoustic treatment, surrounding walls and associated structures.
Related products
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
YELOfon FS50
Dimensions
50mm x 30mm x 6mm x 2m
Quantity per box
240 lengths, 480lm
Minimum order quantity
1 length (2m)
Eliminates acoustic & thermal bridging
Robust Detail compliant component
L-profiled to aid installation process
Downloads
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
