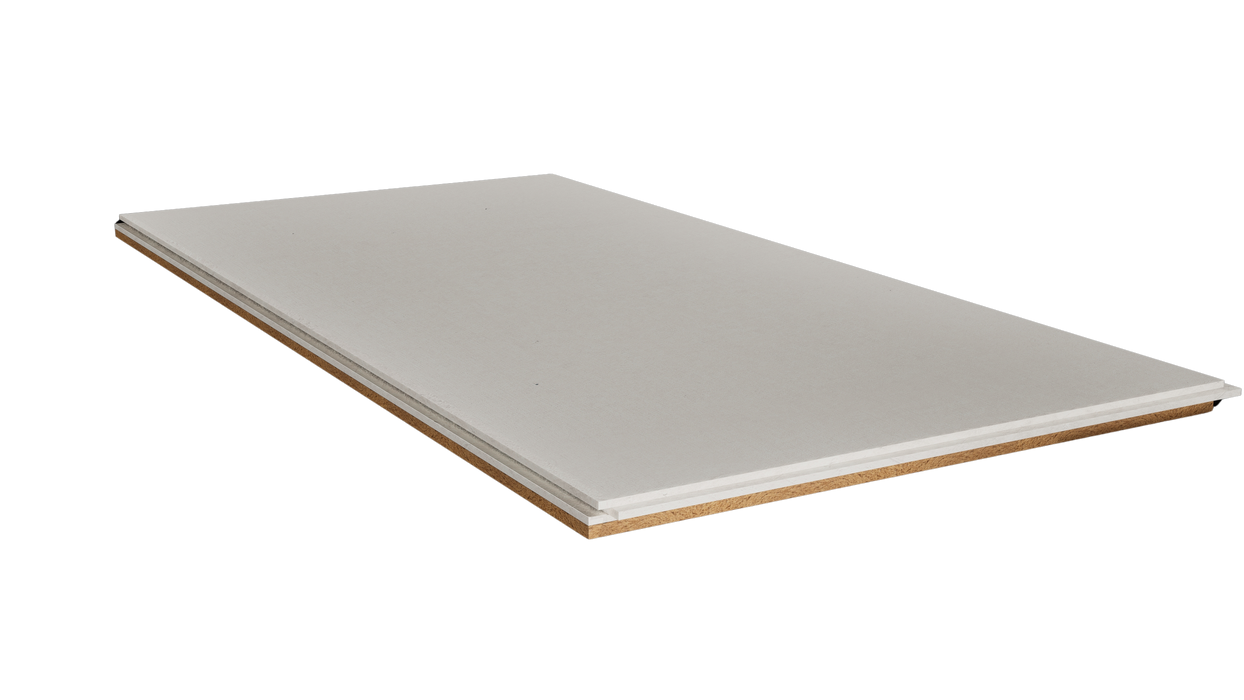

High density acoustic overlay board for separating floors
HiDECK Acoustic Overlay 28 flooring treatment’s high density and superior compressive strength resilient layer provide outstanding levels of acoustic performance, exceeding legislative requirements. The board has a T&G edge profile and easy screw-free installation.
Related products
YELOfon FS50
Cellecta PRO Adhesive
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
HiDECK Acoustic Overlay
Product description
High density composite acoustic overlay floorboard
Thickness
28mm
Type of facing board
Tongue & groove high density gypsum
Resilient layer
10mm FIBREfon 10 wood fibre
Board dimensions
600mm x 1200mm
Weight
24.10kg/m² - 17.32kg/board
Flanking/edge strips
YELOfon FS50
Robust Detail treatment FFT4 compliant
Suitable for steel/ concrete & concrete floors
Feels like screed
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
