CO2 blown extruded polystyrene

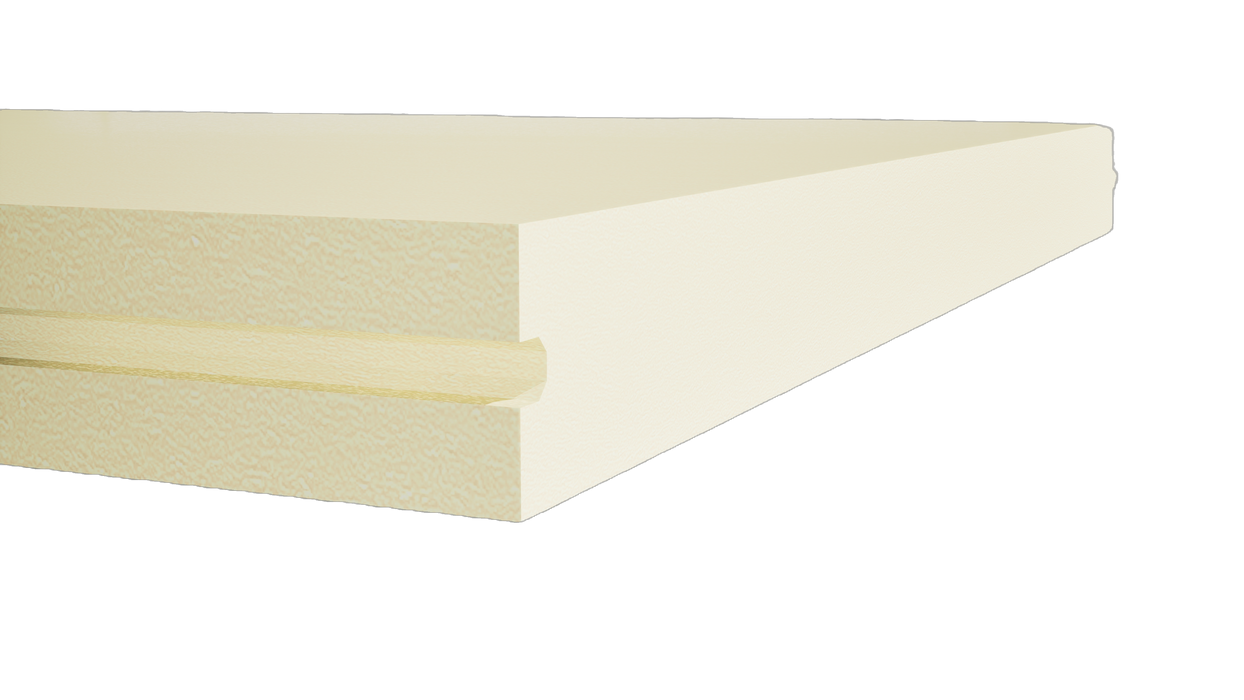

Cellecta’s XPERi insulation boards have a closed cell structure that provides unrivalled resistance to water absorption and high compressive strength, making them ideal for external basement lining applications.
Related products
_edited.png)
HEXATHERM XFLOOR 250
HEXATHERM XFLOOR 300
HEXATHERM XFLOOR 500
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
HEXATHERM XPERI
Product description
CO₂ blown extruded polystyrene
Thermal conductivity (W/mK)
≤ 80mm, ≥ 81mm
Strength at 10% compression (kPa)
250 ≤ 30mm, 300 ≥ 40mm
Strength at 2% compression (kPa)
80 ≤ 30mm, 125 ≥ 40mm
Long term water absorption by immersion
<0.7%
Edge profile
Tongue & groove
Board size (mm)
600 x 2500
Thickness (mm)
30, 40, 50, 60, 80, 100, 120, 140, 160
Ideal for external, below ground applications
Very low water absorption <0.7%
Excellent life-long thermal performance
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
