Specifications
Brand name
FIBREfon Flo
Product description

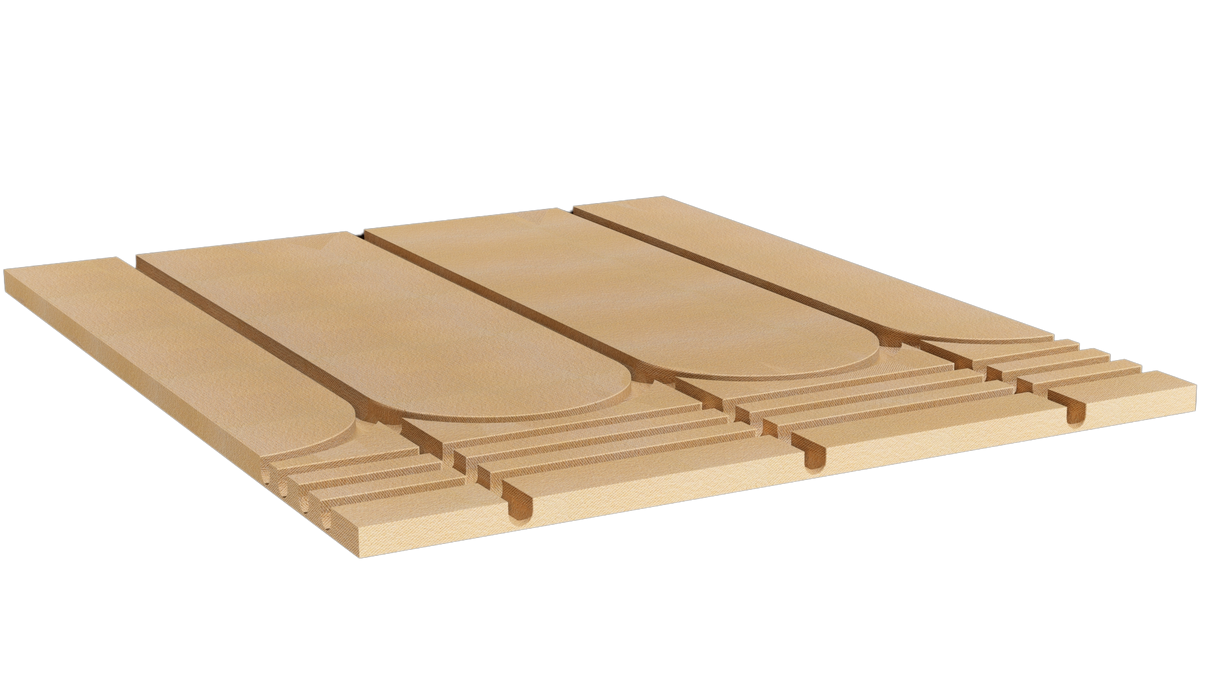

Routed, wood fibre UFH & acoustic floorboard
Thermal conductivity (W/mK)
0.048
Dimensions
24 x 600 x 1200
Route sizes available to suit UFH diameter (mm)
12, 15, 16
Pipe centre options (mm)
150, 200
Return style
Arch
Weight
6.48kg/m², 4.67kg/board
Coverage per board
0.72m²
Minimum order quantity
1 board
Associated heat difussion plate
CELLECTA ULTRAplate 1i
Associated thermal perimeter edge strip required
CELLECTA YELOfon ES5
UFH board with superior acoustic properties
Made from recycled/recyclable wood fibre
Manufactured to suit pipe diameter
Downloads
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
