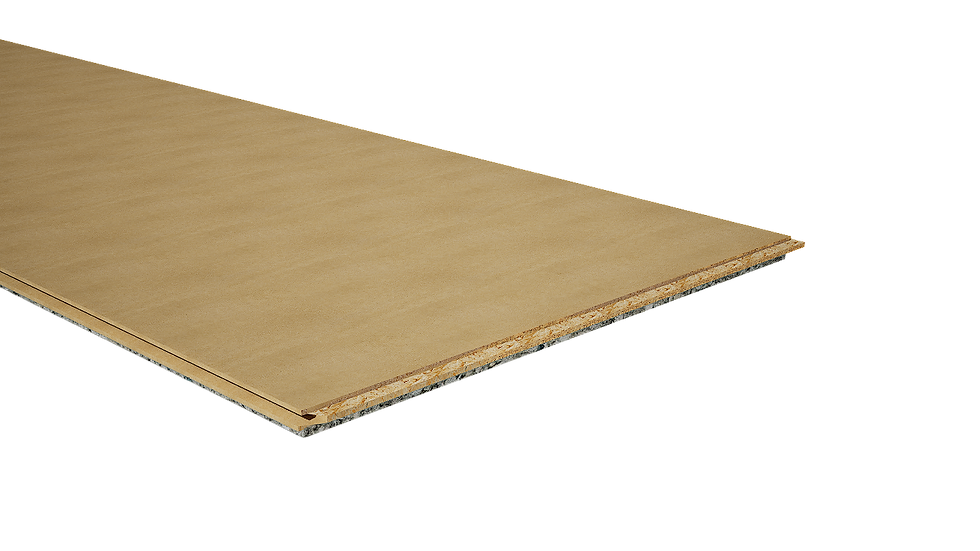

Composite acoustic overlay floorboard
DECKfon 26T is the UK's No. 1 composite overlays are the ideal acoustic treatment to improve the performance of an existing structural timber decked floor. All three treatments combine a tongue and groove timber floorboard with a low resonance, flexible resilient foam.
Related products
YELOfon FS30
Cellecta FON Adhesive
FIBREfon Micro 50
HP30 Resilient Bar
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
DECKfon 26T
Product description
Composite acoustic overlay floorboard
Type of facing board
18mm P5 Chipboard
Resilient layer
8mm open-cell PU foam
Board dimensions (mm)
26 x 600 x 2400
Weight
13.80kg/m², 19.87kg/board
Quantity per pallet
95.04m², 66 boards
Minimum order quantity
1 board
Associated acoustic perimeter flanking strip required
YELOfon FS30
Required jointing adhesive
CELLECTA fon Adhesive
26mm board thickness
Over 1 million m² installed
Ideal for conversion & refurb projects
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
