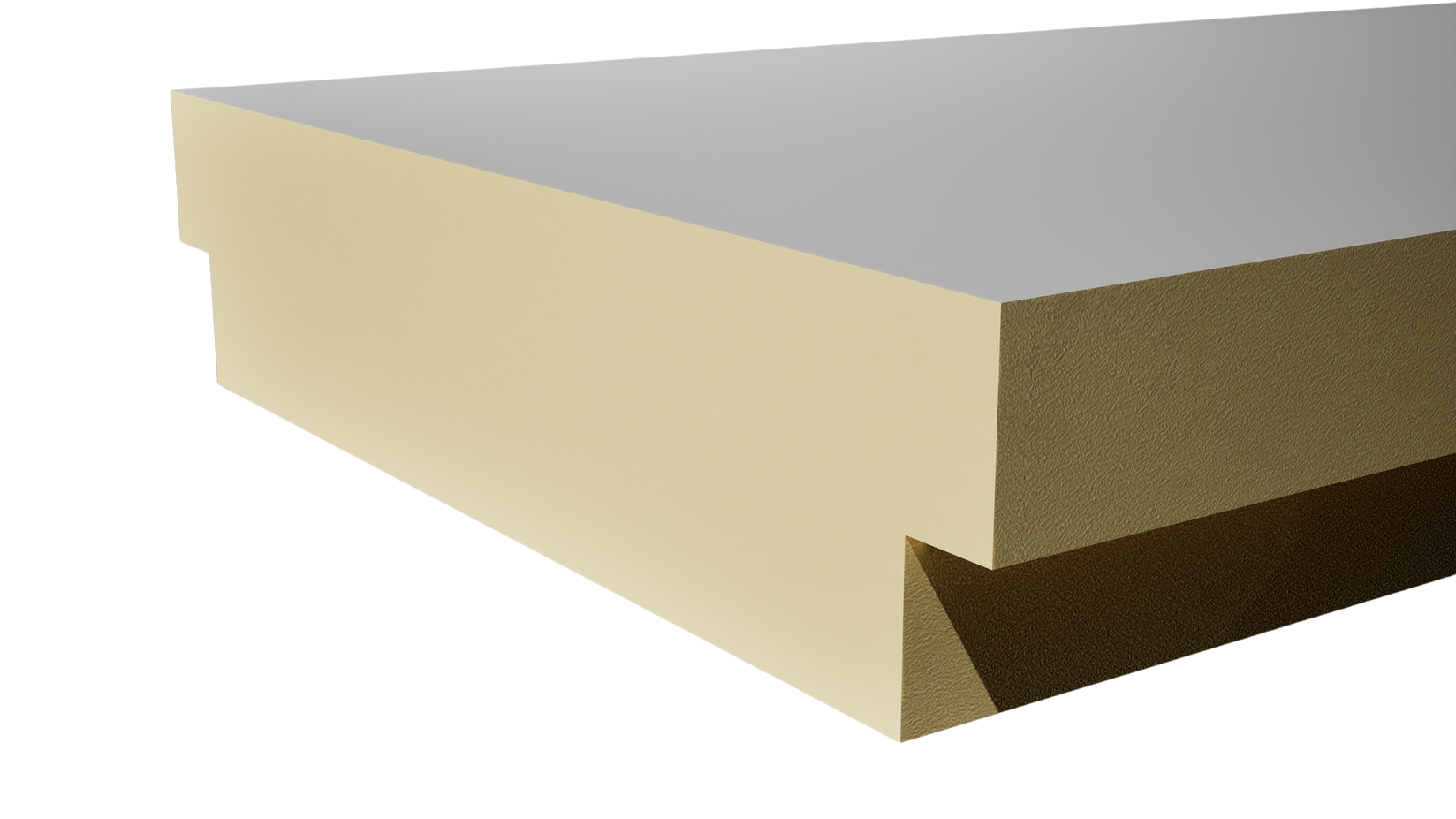

CO2 blown extruded polystyrene 'T' profiled blocks
TETRiS patented insulation blocks provide outstanding thermal and structural performance. The block sit on and fit between standard pre-stressed concrete floor beams and then finished with a structural concrete topping.
Related products
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
TETRiS
Product description
CO₂ blown extruded polystyrene 'T' profiled
Thermal conductivity (W/mK)
0.034
Strength at 10% compression (kPa)
>300
Strength at 2% compression (kPa)
125
Long term water absorption by immersion
<0.7
Edge profile
Rebated to suit the concrete beam used
Board size (mm)
300 (T300) / 600 (T600) x 2500
Thickness (mm)
90, 100, 120, 140, 160
Produces a super insulated suspended ground floor with zero cold bridging
Strong, 1.5m² lightweight boards
Quick and easy to install
Downloads
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
