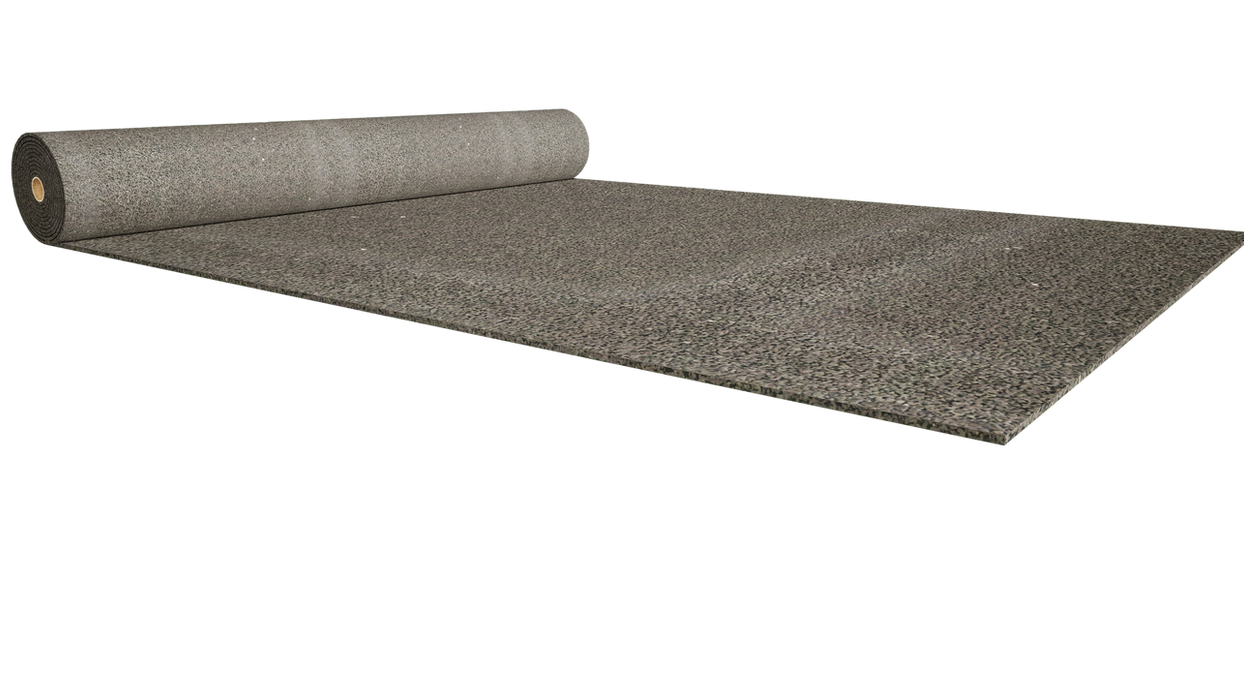

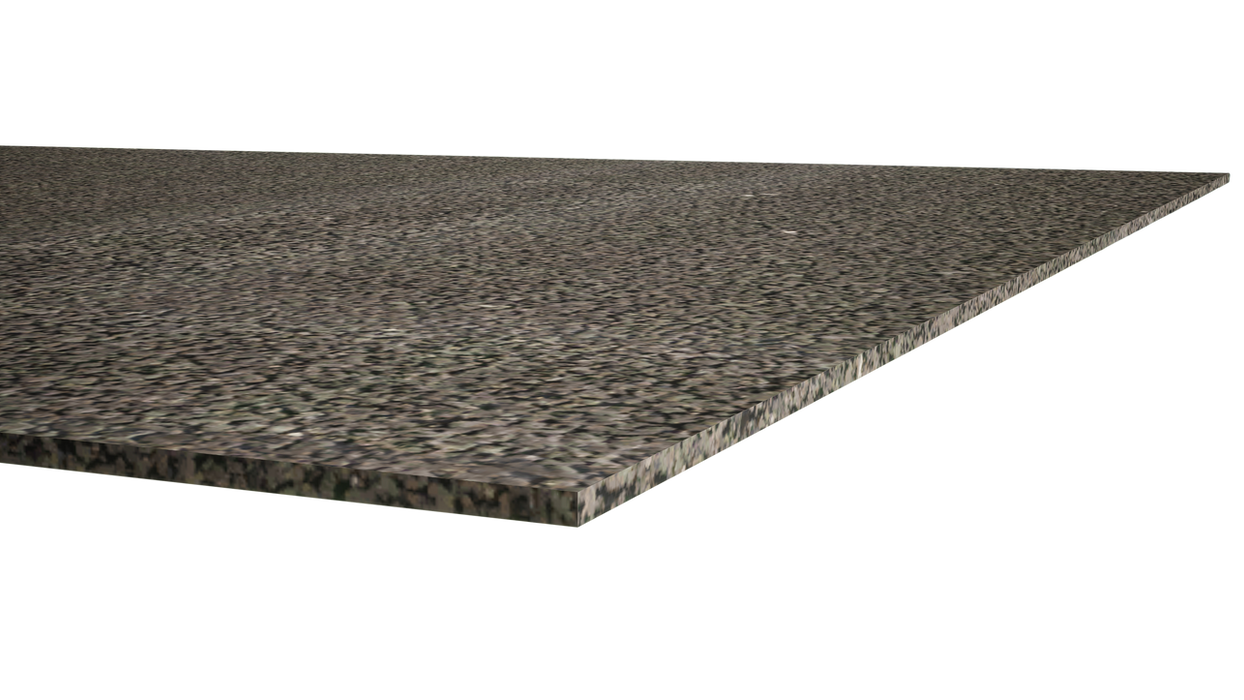

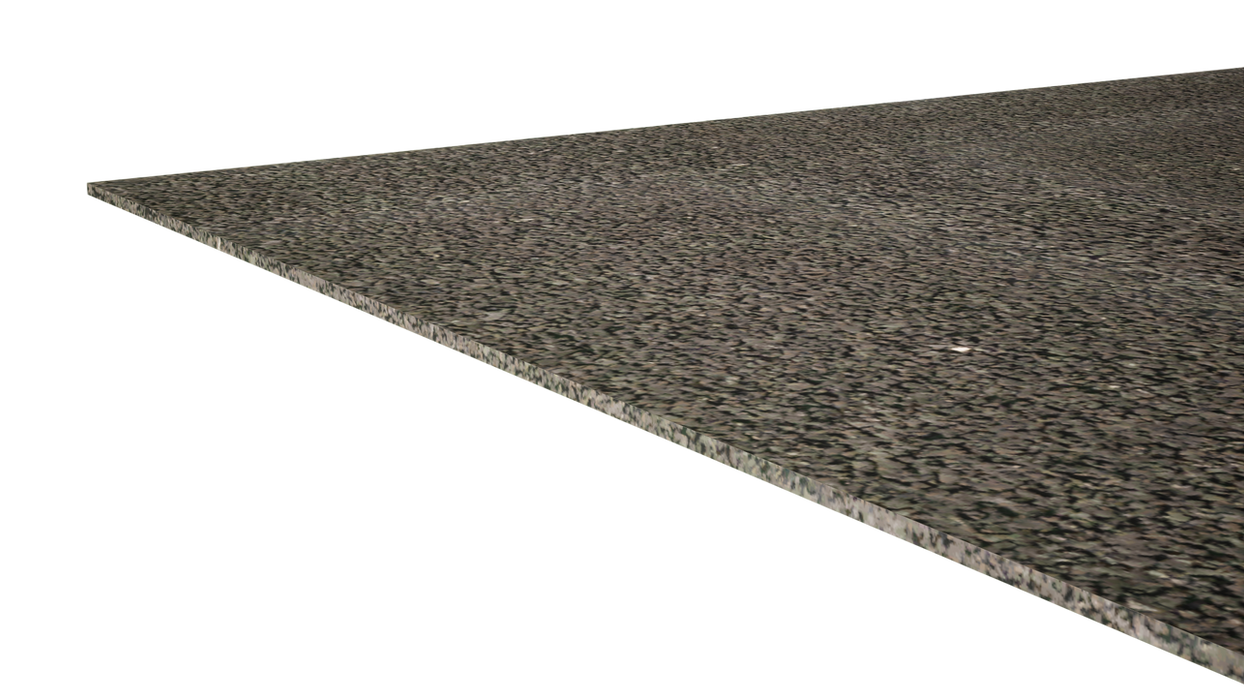

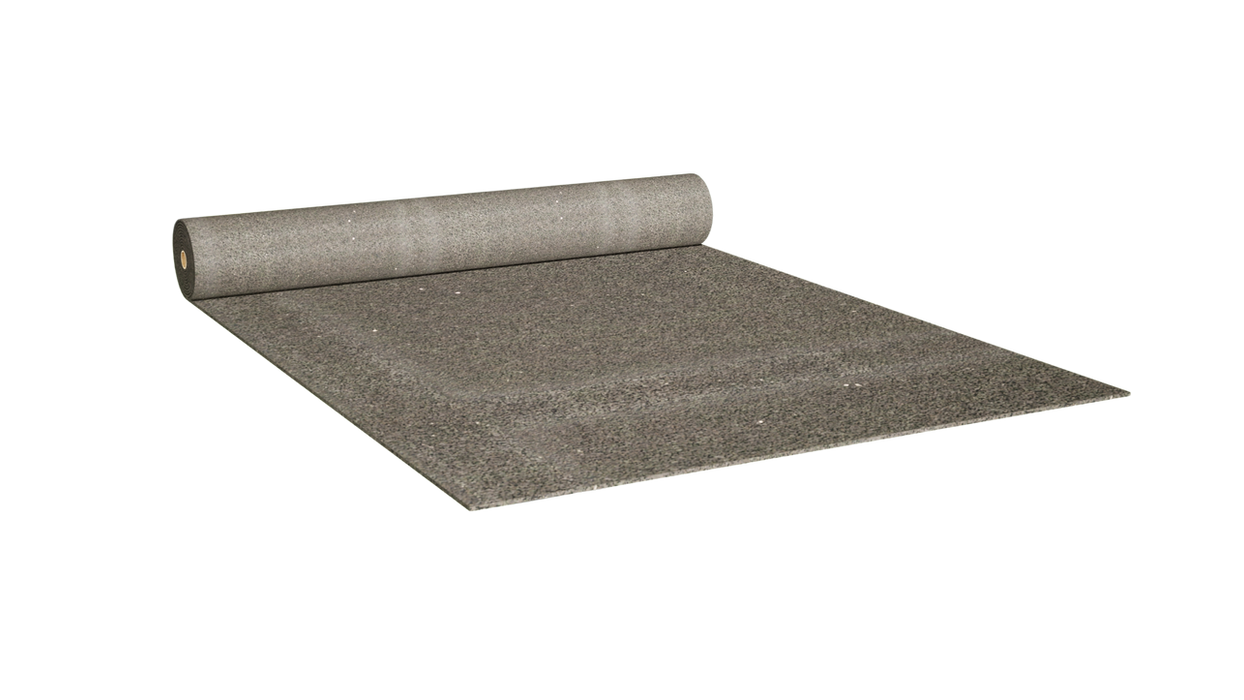

High density re-bonded rubber crumb resilient layer
RUBBERfon Impact range of resilient layers are made from 100% recycled rubber to produce an isolation layer that provides an effective barrier to impact sound transmission through concrete separating floors, ensuring compliance with legislative requirements.
Related products
RUBBERfon Edge
Cellecta HG Joining Tape
_edited.png)
HEXATHERM XFLOOR 250
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
RUBBERfon Impact 6
Product description
High density re-bonded rubber crumb resilient layer
Thickness
6mm
Roll dimensions
1 x 8
Roll coverage (m²)
8
Weight
4.50kg/m², 36.00kg/roll
Quantity per pallet
16 rolls
Minimum order quantity
1 roll
Associated acoustic perimeter edge strip required
RUBBERfon Edge 5mm x 200mm x 50m
Associated jointing tape
HG-tape 50mm x 50m
6mm thickness
Suitable for all types of concrete floors
Proprietary Robust Detail E-FC-18*& 19*
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
