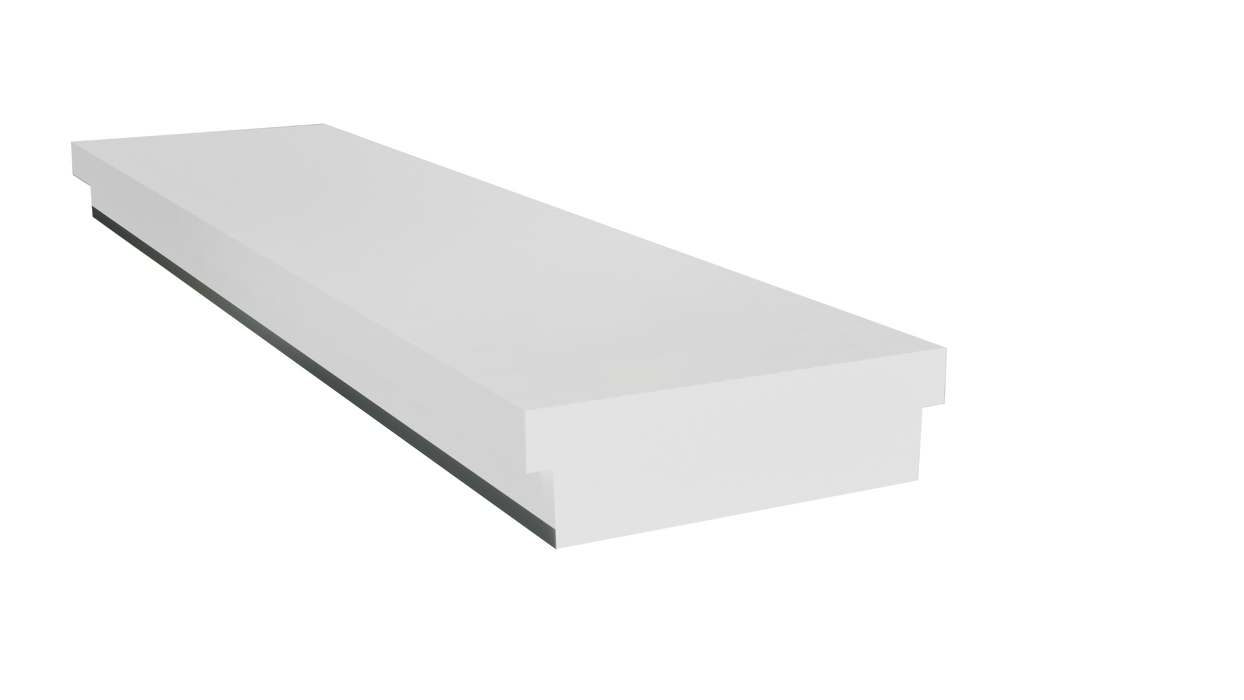

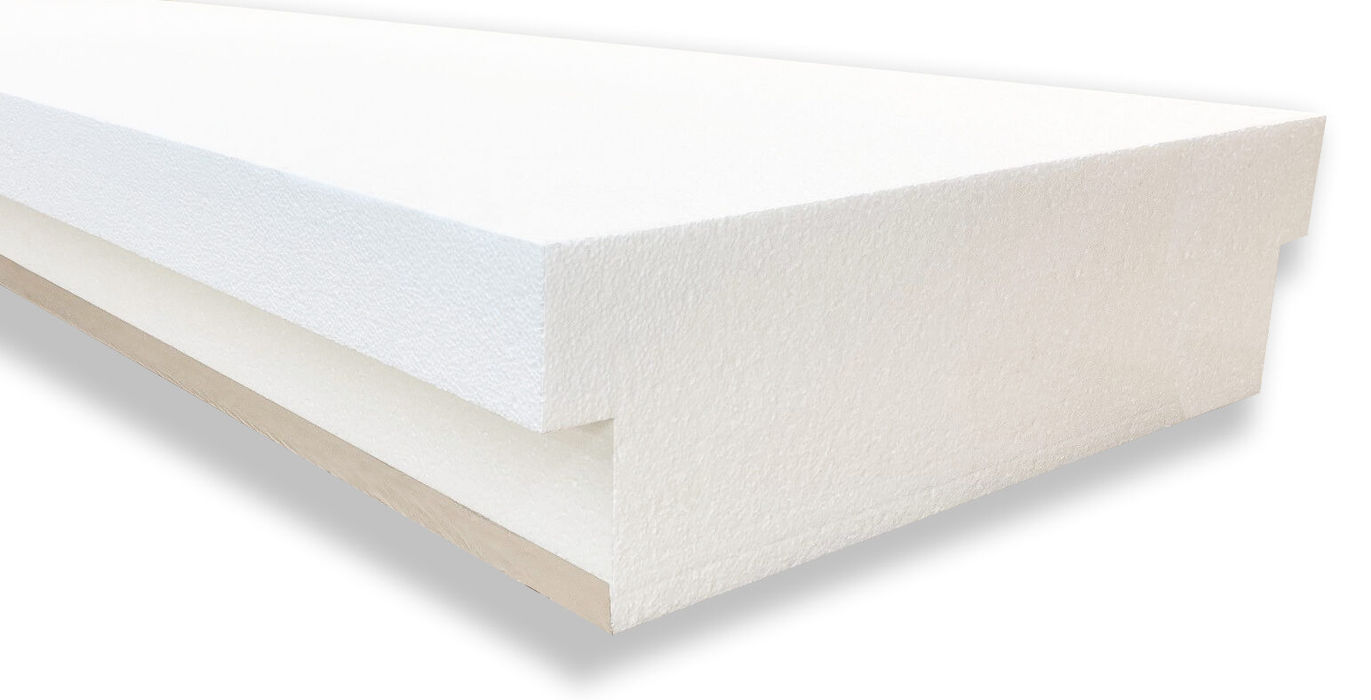

Expanded polystyrene 'T' profiled blocks with high emissivity aluminium
insuBEAM low emissivity foil faced insulation blocks are manufactured to the highest possible specification. Their physical properties are determined under strictly controlled laboratory conditions in accordance with the UKCA Standards.
Related products
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
insuBEAM
Product description
Expanded polystyrene 'T' profiled blocks with high emissivity aluminium foil facing
Thermal conductivity (W/mK)
0.034
Strength at 10% compression (kPa)
200
Edge profile
Rebated to suit the concrete beam
Board size (mm)
300 (iB3) / 600 (iB6) wide x 2400
Thickness
175mm
Thickness of upper section
175mm
Thickness of lower section
100mm
Minimum order quantity
1 board
Produces a suspended ground floor with outstanding thermal performance
Low embodied CO2 solution
Supplied in plot specific quantities
Downloads
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
