Direct to joist, four layer acoustic floorboard

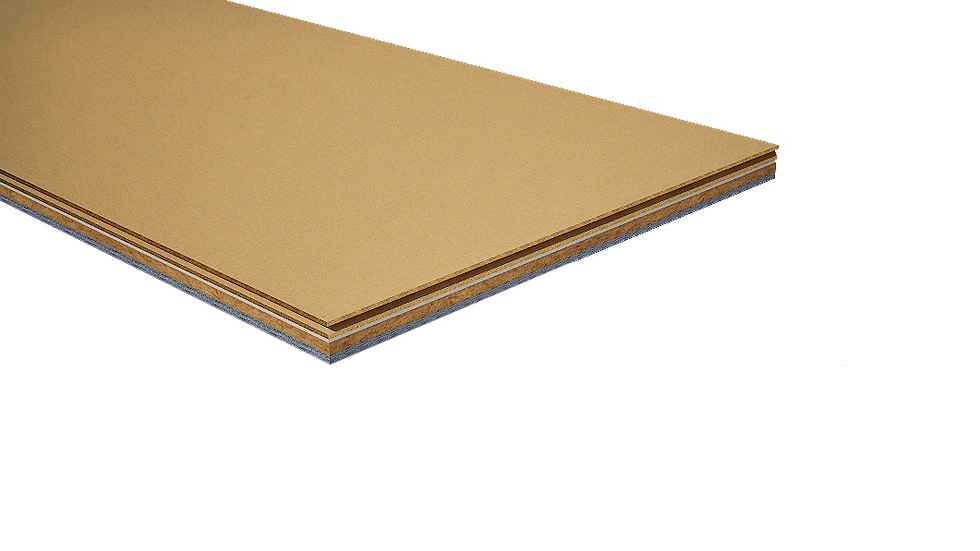

DECKfon Quattro 39 structural acoustic composite floorboards are designed to be laid on timber joist floors where the ceiling below is not replaced. The unique four layer make-up consists of a P5 T&G chipboard and two resilient layers isolated by a high density MDF sheet that delivers outstanding sound proofing performance.
Related products
YELOfon ES5
Cellecta FON Adhesive
FIBREfon Micro 50
Architect and specifier resources
Third Party Accreditation and Approvals
Specifications
Brand name
DECKfon Quattro 39
Product description
Composite acoustic deep batten
Resilient layer
18mm open-cell PU foam
Board dimensions (mm)
39 x 600 x 2400
Weight
20.95kg/m², 30.17kg/board
Quantity per pallet
72m², 50 boards
Minimum order quantity
1 board
Associated acoustic perimeter edge strip required
YELOfon ES5/120
CELLECTA fon Adhesive
Ideal for conversion & refurb projects
.png)
Excellent acoustic performance
T&G edge detail and moisture resistant
Robust Detail and Proprietary applications
Handling and Storage
Store inside
This product should be stored inside on a pallet in water-tight conditions on a dry, flat and level base.
It can only be stored in a single lift, do not double stack.
If you are required to re-stack the product, we advise that the boards are stored on a pallet or are fully supported from the underside.
Care should be taken not to damage the edges of the board whilst re-stacking. The stacking of the product on it's edges should be avoided, as this can lead to damage.
Product protection
This product is supplied on pallets, wrapped in temporary protection. This covering is to offer dust protection and is a temporary measure to protect the boards from the weather during the loading/unloading process, it is not a waterproof cover and should be stored inside.
Adhesives and primers need to be protected from frost damage. They should be stored & used at temperatures between 5°C and 35°C and kept out of direct sunlight.
